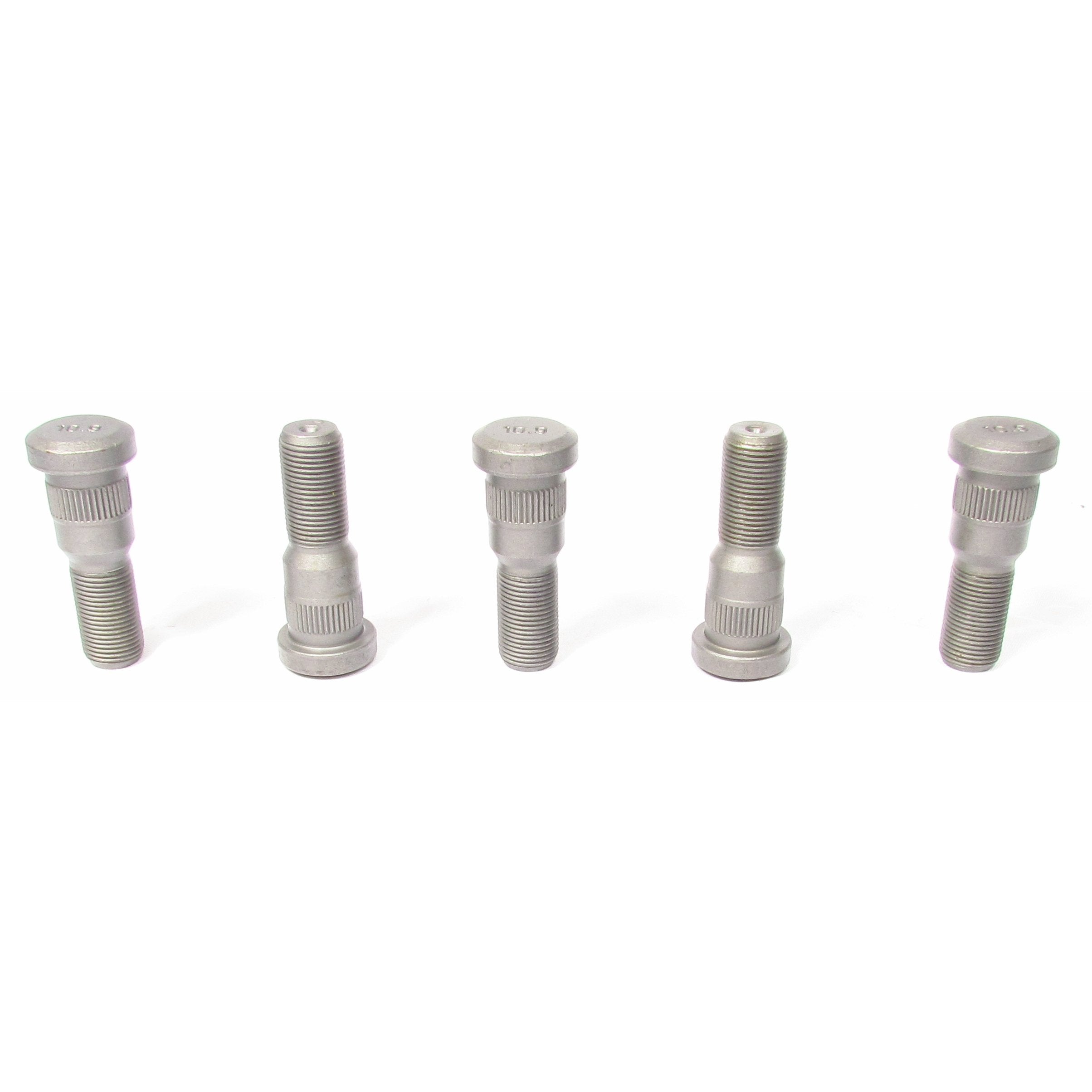

Fast shipping Serrated Drive Wheel Studs 3/4"-16 THD 0,900" B.D. x 2 19/32" Length - E8949 - 10 Pack

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286689 designed to provide a secure and reliable hold for vehicle wheels. Manufactured from high strength class 10.9 steel, these studs are designed to withstand loads and stresses They feature a Metric Thread Size M22 X 1.5-6g on one end and a knurled section on the other end, allowing for a tight fit into the corresponding holes in the wheel hubs.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E8980, E-8980
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: M22 X 1.5-6g

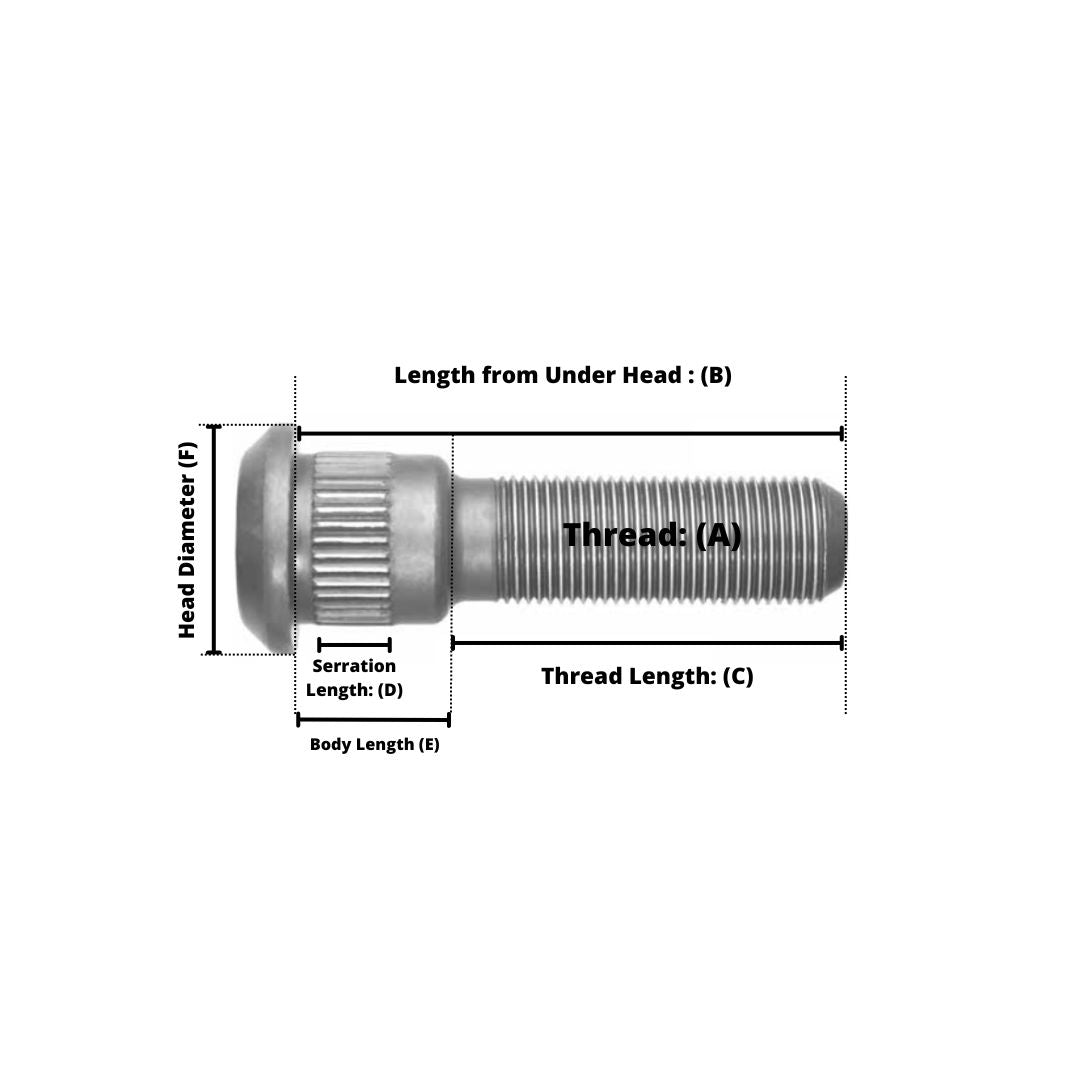

• Body Length (E): 7/8”

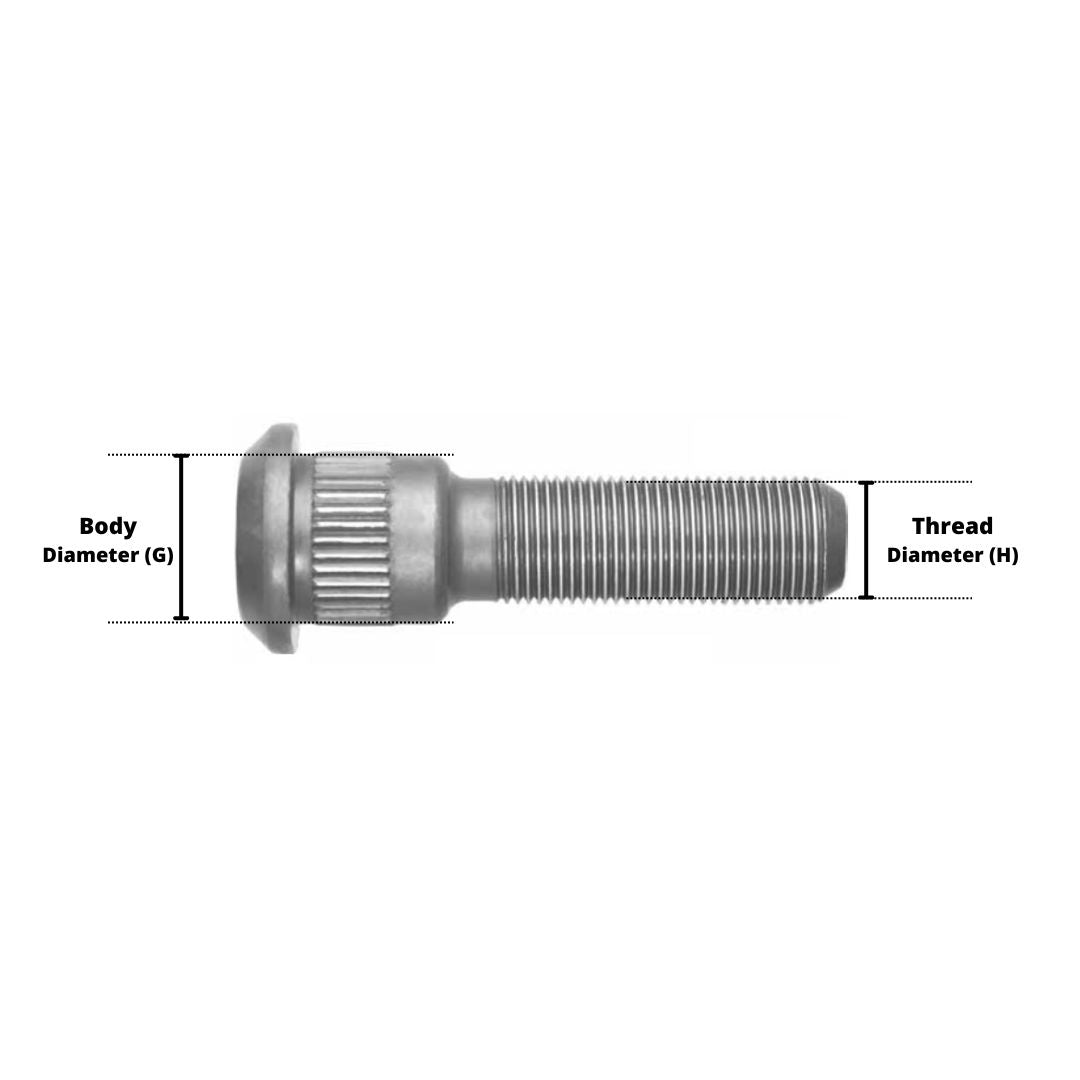

• Body Diameter (G): 0.975"
• Length from Under Head (B): 5 3/32"
• Head Diameter (F): 1.31"
• Head Style: Round
• Head Thickness: 0.31"
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Wheel End Thread Direction: RH (Right Hand)
• Threads per Inch: 1.5 per mm
• Thread Length (C): 3-3/4"
• Serration: Serrated
• Serration Length (D): 0.50"
• Serration Diameter: 1.015"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016158
